Introduction

Memory management is a critical component of computer systems and software development, ensuring that a system uses memory resources efficiently. It refers to the processes and techniques used to allocate, track, and free memory during the execution of programs. Proper memory management is essential for system performance, stability, and reliability, particularly in low-level programming, operating systems, and large-scale applications.

Memory management allows programs to allocate and deallocate memory dynamically during their execution, making optimal use of available resources. This guide will explore what memory management is, its major use cases, how memory management works at a system level, the architecture of memory management, and the basic workflow of managing memory effectively. We’ll also provide a step-by-step guide on how to get started with memory management in a variety of programming environments.

What is Memory Management?

Memory management refers to the process of controlling and coordinating computer memory, allocating and freeing memory blocks, and ensuring that memory is used efficiently throughout a program’s lifecycle. In modern computing, this includes both primary memory (RAM) and secondary memory (storage).

Memory management has two main goals:

1. Efficient Memory Allocation: Ensuring that memory is allocated to processes and programs in such a way that resources are used optimally.
2. Memory Deallocation: Ensuring that memory that is no longer needed is properly released to prevent memory leaks and wasted resources.

Memory management is implemented in both hardware and software. The operating system (OS) is responsible for managing memory, but application-level programming languages also have specific memory management mechanisms (e.g., automatic garbage collection in languages like Java or manual memory allocation in C and C++).

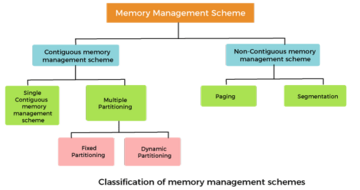

Types of Memory Management

• Static Memory Allocation: Memory is allocated at compile time, and its size is fixed throughout the program’s execution.
• Dynamic Memory Allocation: Memory is allocated during the program’s execution (at runtime), which allows for more flexibility and efficient use of memory resources.

In low-level programming languages like C and C++, developers are required to manage memory explicitly, while in languages like Java or Python, memory management is handled by the garbage collector.

Major Use Cases of Memory Management

Memory management plays a crucial role in many areas of computing and software engineering. Here are some of the major use cases:

1. Efficient Application Performance

By managing memory properly, an application can run efficiently without consuming excessive resources. This ensures that other processes or applications on the system aren’t slowed down by unnecessary memory consumption.

• Use Case Example: In large-scale applications like video games or database management systems, memory management is critical to optimize performance and prevent crashes or slowdowns.

2. Handling Large Data Structures

Memory management allows programs to efficiently work with large data structures (e.g., arrays, trees, graphs) without running out of memory. This is crucial in fields like machine learning, data science, and big data.

• Use Case Example: Allocating memory dynamically for large training datasets in machine learning algorithms.

3. Preventing Memory Leaks

A memory leak occurs when a program allocates memory but fails to release it once it’s no longer needed. Proper memory management ensures that memory is freed when no longer required, preventing leaks and optimizing memory use.

• Use Case Example: In long-running applications like web servers or real-time applications, memory leaks can cause crashes if not properly managed.

4. Supporting Multitasking and Multiprocessing

Memory management ensures that multiple processes or threads can run simultaneously on a system without interfering with each other, providing isolation and stability.

• Use Case Example: Memory management in operating systems like Linux or Windows is critical for multitasking environments, where multiple applications are running concurrently.

5. Embedded Systems and Real-Time Applications

In embedded systems (e.g., IoT devices, medical equipment), where resources are limited, memory management ensures that every byte of memory is used effectively.

• Use Case Example: In an embedded system controlling a drone or a sensor network, efficient memory management is essential to avoid crashes or malfunctions.

How Memory Management Works: Architecture

Memory management is implemented at both the hardware level and the software level. Here’s how memory management is typically structured:

1. Memory Segmentation

Memory is typically divided into several regions, each serving a specific purpose:

• Code Segment (Text Segment): Stores the program’s executable instructions.
• Data Segment: Holds global variables and static variables.
• Heap: Dynamically allocated memory used by applications during runtime.
• Stack: Stores function call information, local variables, and function parameters.

2. Memory Allocation Techniques

• Static Allocation: Fixed memory allocation at compile time (e.g., global variables).
• Dynamic Allocation: Memory is allocated at runtime using functions like malloc() or new in languages like C/C++.

3. Memory Management Units (MMUs)

The Memory Management Unit (MMU) is a hardware component responsible for translating logical addresses into physical addresses in memory. It plays a significant role in virtual memory systems by enabling paging and segmentation.

4. Virtual Memory

Virtual memory enables a system to use disk space as additional memory, allowing programs to access more memory than physically available by paging parts of the program into and out of physical memory.

5. Garbage Collection (GC)

In higher-level programming languages, garbage collection automatically manages memory by identifying and freeing up memory that is no longer being used. Languages like Java and Python handle memory management through garbage collectors, which run in the background and reclaim unused memory.

Basic Workflow of Memory Management

The basic workflow of memory management involves several steps:

1. Memory Allocation: Allocating memory when required by the program. This can be done statically (at compile time) or dynamically (at runtime).
2. Memory Use: The program utilizes the allocated memory for storing data, executing instructions, and processing.
3. Memory Deallocation: Once memory is no longer needed, it must be properly released back to the system to avoid memory leaks.
4. Garbage Collection (Optional): In languages with automatic memory management, garbage collectors periodically reclaim unused memory automatically.

Step-by-Step Getting Started Guide for Memory Management

Here’s how you can get started with memory management in C (manual management) and Python (automatic management):

Step 1: Install Development Environment

For languages like C/C++, ensure you have a development environment with tools like GCC or Clang installed. For Python, just install Python from the official website.

Step 2: Memory Management in C (Manual)

In C, memory management is done manually using functions like malloc(), free(), and realloc().

Example in C:

#include <stdio.h>
#include <stdlib.h>

int main() {
    int *ptr = (int*)malloc(sizeof(int));  // Allocating memory for an integer
    if (ptr == NULL) {
        printf("Memory allocation failed\n");
        return 1;
    }

    *ptr = 10;  // Storing value in dynamically allocated memory
    printf("Value: %d\n", *ptr);

    free(ptr);  // Freeing allocated memory
    return 0;
}

In this example, malloc() allocates memory, and free() deallocates it to avoid memory leaks.

Step 3: Memory Management in Python (Automatic)

In Python, memory management is handled automatically by the garbage collector, which reclaims memory when objects are no longer in use.

Example in Python:

def create_list():
    my_list = [1, 2, 3, 4, 5]
    return my_list

data = create_list()
print(data)  # Accessing the list

# Python automatically handles memory management, no need to free memory explicitly

In this example, Python automatically handles the creation and destruction of memory for objects like my_list when they are no longer referenced.

Step 4: Understanding Memory Leaks

A memory leak occurs when memory that is no longer needed is not properly deallocated. In C/C++, this can happen if malloc() or new is used without corresponding calls to free() or delete. In Python, memory leaks can occur if objects are not properly dereferenced.

Example of Memory Leak in C:

// This will cause a memory leak because malloc() is not paired with free()
int* ptr = (int*)malloc(sizeof(int));  // Memory allocated
// No call to free(ptr), resulting in a memory leak
