What is WebSocket?

WebSocket is a web communication protocol standardized as RFC 6455 by the IETF in December 2011, enabling persistent, full-duplex communication over a single TCP connection (docs.spring.io). Unlike HTTP’s half-duplex, request-response model, WebSocket begins with an HTTP handshake that is “upgraded” to a custom framing protocol, allowing both client and server to send messages at any time, bypassing the need for repeated HTTP connections (pages.ably.com). Due to its compatibility with ports 80 and 443 and seamless operation through proxies, it’s well suited for modern web environments and supports secure communications via wss:// (developer.mozilla.org).

One of WebSocket’s core strengths lies in its low latency and minimal overhead. Once the handshake is complete, the connection remains alive, eliminating repetitive TCP handshakes, SSL negotiations, and HTTP headers in subsequent messages. This efficiency makes it ideal for interactive, real-time user experiences.

Major Use Cases of WebSocket

WebSocket powers a wide array of real-time, bidirectional applications, fundamentally transforming digital interactions:

Chat and Messaging Apps

Modern chat applications—such as Slack, WhatsApp Web, and in-game messaging—rely on WebSocket to immediately transmit messages between clients and servers without delay (linkedin.com).

Collaborative Editing Tools

Platforms enabling real-time collaboration, like Figma or Google Docs, use WebSocket to synchronize edits, cursor positions, and selections among multiple users simultaneously (developer.mozilla.org).

Live Dashboards and Analytics

Financial dashboards streaming constant market data, IoT sensor networks, and monitoring systems frequently use WebSocket to push updates instantly, supporting timely decision-making .

Online Gaming and Immersive Experiences

Real-time multiplayer games demand sub-100ms latency to maintain game state consistency, a use case where WebSocket excels .

IoT Device Control and Monitoring

For devices that stream sensor data or require immediate remote control, WebSocket enables efficient bidirectional communication where every message counts.

Notifications and Streaming Updates

Real-time updates—such as stock tickers, sports scores, and social alerts—are delivered seamlessly over WebSocket, eliminating the need for inefficient polling mechanisms .

How WebSocket Works: Architecture & Protocol

The elegance of WebSocket lies in its structured yet flexible architecture:

a. Handshake and Protocol Upgrade

Communication starts with a standard HTTP GET request containing headers like Connection: Upgrade, Upgrade: websocket, and Sec‑WebSocket‑Key. The server responds with a 101 Switching Protocols, validating the request, returning a Sec‑WebSocket‑Accept key, and finalizing the switch to WebSocket (datatracker.ietf.org, pubnub.com).

b. Persistent TCP Connection and Full‑Duplex Communication

Post-handshake, a single TCP connection remains open. Either party can send framed messages independently, enabling true real-time interaction without the overhead of new connection setups (linkedin.com).

c. Frame Structure, Masking & Control Frames

WebSocket messages are structured in frames, each with fields for a FIN bit, opcode (text, binary, ping, pong, close), payload length (7–64 bits), and optional masking. Clients must mask payloads with a 4-byte key, ensuring intermediary proxies cannot misinterpret the data (en.wikipedia.org). Control frames include ping and pong for heartbeating, and close codes like 1000 (normal) and 1006 (abnormal closure) to manage connection health (medium.com).

d. API and Browser Support

The WebSocket API—exposed via new WebSocket(url) in browsers—supports event-based interaction using onopen, onmessage, onerror, and onclose. Advanced stream control is possible with the WebSocketStream API, while emerging standards like WebTransport add features like unordered delivery and datagrams that WebSocket lacks (developer.mozilla.org).

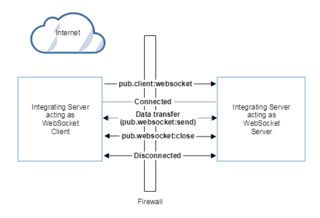

Basic Workflow of WebSocket

1. Connection Initiation:
   Client sends HTTP handshake.
2. Handshake Completion:
   Server responds with 101, switches protocol.
3. Connection Open:
   readyState transitions to OPEN, enabling bidirectional message exchange.
4. Message Exchange:
   Data is sent using ws.send() and received via onmessage, in frames that may carry text, binary, or control signals.
5. Keepalive & Health Checks:
   ping/pong control frames are used to maintain the connection, especially through firewalls or proxies (medium.com).
6. Graceful Closure:
   Either client or server sends a close frame. Upon reply, the connection is terminated cleanly, ensuring no message loss.

Step-by-Step Getting Started Guide

✅ Step 1: Initialize Node.js Project

npm init -y
npm install ws

✅ Step 2: Implement WebSocket Server

server.js

const WebSocket = require('ws');
const wss = new WebSocket.Server({ port: 8080 });

wss.on('connection', ws => {
  console.log('Client connected');

  ws.on('message', msg => {
    console.log('Received:', msg);
    ws.send(`Echo: ${msg}`);
  });

  ws.on('close', () => console.log('Client disconnected'));
});

Run: node server.js

✅ Step 3: Build Web Client (index.html)

<!DOCTYPE html>
<html>
<head><title>WebSocket Demo</title></head>
<body>
  <input id="msg" placeholder="Type message" />
  <button onclick="send()">Send</button>
  <div id="log"></div>

  <script>
    const ws = new WebSocket('ws://localhost:8080');
    ws.onopen = () => log('Connected');
    ws.onmessage = e => log('Server: ' + e.data);
    ws.onclose = () => log('Connection closed');
    function send() {
      const msg = document.getElementById('msg').value;
      ws.send(msg);
      log('You: ' + msg);
    }
    function log(text) {
      const div = document.getElementById('log');
      div.innerHTML += `<p>${text}</p>`;
    }
  </script>
</body>
</html>

Open in a browser and test sending messages in real time.

✅ Step 4: Add Enhancements

• Secure with wss:// and SSL/TLS
• Automate reconnections with exponential backoff
• Monitor and manage heartbeats, buffer sizes, and idle sessions
• Scale using load balancers like NGINX or HAProxy with sticky sessions, horizontal clustering, and Pub/Sub mechanisms such as Redis (linkedin.com).

Best Practices & Production Considerations

WebSocket deployments require thoughtful architecture to ensure efficiency, security, and scalability:

• Security: Validate Origin headers, use TLS encryption, and implement token or cookie authentication to prevent CSWSH attacks (linkedin.com, en.wikipedia.org).
• Scaling: Use sticky sessions, load-balanced deployment, and Pub/Sub for synchronization across instances (medium.com).
• Resource Management: Regularly clean up idle connections, monitor heartbeat frequency, implement backpressure, and avoid buffer saturation (dev.to).
• Data Efficiency: Use the permessage-deflate extension for large payload compression.
• Fallback Mechanisms: Integrate libraries like Socket.IO to support automatic fallback to HTTP polling or SSE where WebSocket isn’t available (en.wikipedia.org, interactiveimmersive.io).
