What is XSLT?

XSLT (Extensible Stylesheet Language Transformations) is a declarative, XML-based language used to transform XML documents into other document formats such as XML, HTML, plain text, or any other text-based format. XSLT is a core part of the XSL (Extensible Stylesheet Language) family standardized by the World Wide Web Consortium (W3C). It plays a crucial role in separating data representation from data content by allowing developers to apply stylesheets (transformation rules) on XML data.

The key idea behind XSLT is that it treats an XML document as a tree of nodes and applies transformation templates to these nodes, resulting in a new document. These templates specify matching patterns and define how the matched content should be processed and output. Because the stylesheet itself is an XML document, it maintains the consistency and interoperability benefits inherent in XML technologies.

XSLT is widely used for various tasks including generating HTML from XML for web display, converting data between incompatible XML vocabularies, producing reports from XML datasets, and even transforming XML into other text-based formats like CSV or JSON (with additional processing).

---

Major Use Cases of XSLT

The versatility of XSLT makes it a powerful tool across numerous domains. Some major use cases include:

2.1 Web Content Generation

XSLT is frequently used to transform XML data into HTML for rendering in web browsers. This enables a clean separation of content (in XML) from presentation logic (in XSLT), supporting dynamic and flexible web pages that can be easily updated by changing the stylesheet without touching the data.

2.2 Data Interchange and Integration

Different systems often use distinct XML schemas to represent data. XSLT acts as a translator, converting XML documents from one schema to another, enabling seamless data exchange in complex enterprise environments and service-oriented architectures.

2.3 Document Publishing and Formatting

Publishing workflows use XSLT to transform content stored in XML into print-ready formats or specialized XML dialects. For example, XSLT can generate XSL-FO (Formatting Objects), which is further processed into PDFs.

2.4 Report Generation

Structured XML data such as logs, analytics, or financial data can be converted into human-readable reports (HTML, CSV, plain text) using XSLT, facilitating automated reporting pipelines.

2.5 Configuration Management and Automation

XSLT can transform XML-based configuration files to suit different environments or software versions, enabling automated deployment and setup processes.

2.6 Web Services and APIs

XSLT is often used to modify or adapt XML payloads in SOAP messages, XML REST API responses, or other web service communication formats, providing runtime flexibility.

---

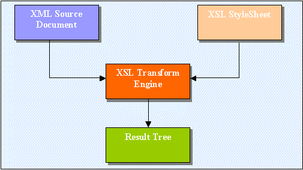

How XSLT Works Along with Its Architecture

At its core, XSLT operates based on three main elements:

3.1 Input XML Document

The source XML document represents structured data arranged hierarchically in nodes such as elements, attributes, text, comments, and processing instructions. This document is parsed into a tree structure for processing.

3.2 XSLT Stylesheet

The stylesheet is itself an XML document that defines a set of template rules. Each template consists of:

• Match Pattern: XPath expressions specify which nodes in the input XML the template applies to.
• Template Body: The instructions on how to transform matched nodes, which may include literal result elements, value extraction, control flow (if, choose), looping (for-each), and calls to other templates.

3.3 XSLT Processor

This is the transformation engine that reads both the XML input and the XSLT stylesheet, applies the template matching rules, executes the instructions, and produces an output document.

---

Detailed Workflow of the Processor

1. Parsing:
   The processor parses the input XML into a Document Object Model (DOM) or a similar tree representation.
2. Template Matching:
   Starting at the root node, the processor searches for the best matching template in the stylesheet for the current node.
3. Instruction Execution:
   The matched template’s instructions are executed, which may include outputting literal text, calling other templates recursively, or applying XPath expressions to extract data.
4. Recursion and Tree Traversal:
   The processor continues recursively, applying templates to child and sibling nodes until the entire XML tree is transformed.
5. Output Generation:
   The output, typically a serialized XML, HTML, or text document, is constructed incrementally according to the templates.

---

Basic Workflow of XSLT

The fundamental workflow of transforming XML with XSLT includes:

Step 1: Design the XML Input

Prepare the source XML document containing your structured data. It must be well-formed and preferably validated against a schema or DTD to ensure consistency.

Step 2: Create the XSLT Stylesheet

Write the stylesheet defining template rules for the nodes you want to transform. Start with a root template matching / or the document element. Use XPath to navigate and select nodes.

Step 3: Apply the Stylesheet Using an XSLT Processor

Use an XSLT processor (e.g., Saxon, Xalan, libxslt) to execute the transformation. This can be done through command-line tools, embedded libraries, or directly in web browsers.

Step 4: Generate and Use the Output

The processor outputs the transformed document, which can be HTML for web display, XML for further processing, or text formats for reporting.

Step 5: Test and Iterate

Verify the output correctness, optimize templates, and extend the stylesheet to cover more complex transformations or conditions.

---

Step-by-Step Getting Started Guide for XSLT

Prerequisites

• Basic understanding of XML syntax and XPath expressions.
• An XML document to transform.
• An XSLT processor or a modern web browser.

---

Step 1: Create Your XML Data File

Start with a sample XML file, for example:

<catalog>
  <cd>
    <title>Empire Burlesque</title>
    <artist>Bob Dylan</artist>
    <country>USA</country>
    <price>10.90</price>
  </cd>
  <cd>
    <title>Hide your heart</title>
    <artist>Bonnie Tyler</artist>
    <country>UK</country>
    <price>9.90</price>
  </cd>
</catalog>

---

Step 2: Write an XSLT Stylesheet

Here is a basic stylesheet that transforms the above XML into an HTML list:

<xsl:stylesheet version="1.0"
  xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

  <xsl:template match="/">
    <html>
      <body>
        <h1>CD Catalog</h1>
        <table border="1">
          <tr bgcolor="#9acd32">
            <th>Title</th>
            <th>Artist</th>
            <th>Country</th>
            <th>Price</th>
          </tr>
          <xsl:for-each select="catalog/cd">
            <tr>
              <td><xsl:value-of select="title"/></td>
              <td><xsl:value-of select="artist"/></td>
              <td><xsl:value-of select="country"/></td>
              <td><xsl:value-of select="price"/></td>
            </tr>
          </xsl:for-each>
        </table>
      </body>
    </html>
  </xsl:template>

</xsl:stylesheet>

---

Step 3: Linking XML with XSLT

Add the following processing instruction at the top of your XML file to associate it with the stylesheet:

<?xml-stylesheet type="text/xsl" href="catalog.xsl"?>

Ensure the stylesheet is saved as catalog.xsl in the same directory.

---

Step 4: View the Transformation Output

• In a browser: Open the XML file directly in browsers like Firefox, Chrome, or Edge, which have native XSLT support. The browser applies the stylesheet and displays the resulting HTML page.
• Using command line: Use tools like xsltproc to transform files from the command line:

xsltproc catalog.xsl catalog.xml > catalog.html

• Programmatically: Use APIs in languages like Java (Saxon, Xalan), Python (lxml), or .NET (System.Xml.Xsl) to embed transformations into applications.

---

Step 5: Enhance Your Stylesheet

• Use conditional logic with <xsl:if> and <xsl:choose> to control output.
• Use <xsl:template> with match attributes to modularize transformations.
• Implement sorting via <xsl:sort>.
• Handle namespaces and multiple XML vocabularies.
• Utilize variables and parameters for reusable logic.

---

Additional Tips for Mastering XSLT

• Use XPath extensively for node selection and filtering.
• Learn the differences between XSLT 1.0, 2.0, and 3.0 versions; later versions support more advanced features like grouping and functions.
• Validate your XML and XSLT with tools or IDEs that support XML editing and debugging.
• Profile and optimize your stylesheets for performance, especially with large XML data sets.
