What is JMeter?

Apache JMeter is an open-source software application designed primarily for performance testing, load testing, and functional testing of web applications and services. Developed by the Apache Software Foundation, JMeter is a widely used tool for testing the performance of various services, with a particular focus on web applications. While it started as a tool for testing web servers, it has since evolved to support a broad range of testing capabilities, including databases, FTP servers, web services, and even distributed applications.

JMeter allows developers and testers to simulate heavy loads on a server, group of servers, network, or object to measure the system’s performance under different load conditions. It provides a user-friendly interface for creating test plans, performing tests, and analyzing the results, which makes it highly popular among developers and quality assurance (QA) professionals.

Key Features of JMeter:

1. Performance Testing: JMeter is primarily used to test the performance of web applications, ensuring that they can handle a large number of concurrent users.
2. Functional Testing: It can also be used for functional testing of applications, ensuring that individual components work as expected.
3. Flexible and Extensible: JMeter supports different testing types (e.g., HTTP, SOAP, REST, JMS, FTP) and can be extended with custom plugins for additional functionality.
4. Distributed Testing: JMeter supports distributed testing, enabling users to perform tests using multiple machines to simulate a high load.
5. Easy Integration with Other Tools: JMeter can integrate with continuous integration (CI) tools, like Jenkins, for automated performance testing in the CI/CD pipeline.
6. Comprehensive Reporting: After running tests, JMeter provides detailed performance metrics and graphical reports, including response times, throughput, error rates, and more.

---

What Are the Major Use Cases of JMeter?

JMeter is a versatile tool with several practical applications. Its major use cases are primarily related to performance testing, load testing, and functional testing of web-based applications. Below are some of the key use cases:

1. Load Testing Web Applications

• Use Case: The most common use case for JMeter is load testing. It simulates multiple users accessing a web application simultaneously to test how it performs under heavy loads.
• Example: A social media website may use JMeter to simulate thousands of users simultaneously logging in, posting content, and interacting with other users to test the application’s performance and scalability under peak traffic conditions.

2. Stress Testing

• Use Case: Stress testing involves pushing the application beyond its limits to determine its breaking point. JMeter helps identify the maximum load the system can handle before it starts failing or showing performance degradation.
• Example: A banking application may be stress-tested using JMeter to simulate a large number of simultaneous transactions during peak times to understand the system’s behavior when under extreme load.

3. Functional Testing of APIs

• Use Case: JMeter can be used to perform functional tests on web services and APIs. This allows developers and testers to verify that the APIs are working as expected.
• Example: A RESTful API serving data for a mobile app might be tested with JMeter to ensure that API responses are correct, formatted properly, and meet expected performance standards.

4. Database Testing

• Use Case: JMeter is also capable of testing databases by simulating SQL queries and measuring the database’s performance under load.
• Example: An e-commerce website might use JMeter to test how well the backend database handles hundreds of concurrent requests for product listings, user information retrieval, and checkout processes.

5. Distributed Load Testing

• Use Case: For applications that require testing on a large scale, JMeter supports distributed load testing, where multiple machines are used to simulate a large number of users.
• Example: A cloud-based application with users from multiple geographic locations may use distributed testing with JMeter to simulate traffic from various regions and measure the application’s performance.

6. Continuous Integration Testing

• Use Case: JMeter can be integrated into the CI/CD pipeline for continuous performance testing, allowing performance issues to be detected early during the development cycle.
• Example: In a DevOps environment, JMeter can be configured to automatically run performance tests after each code commit or deployment, providing instant feedback to developers on the performance of new features.

---

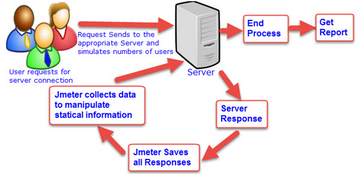

How JMeter Works Along with Architecture?

JMeter operates with a simple architecture that allows it to simulate multiple types of tests, including load, performance, and functional tests. The main components of JMeter’s architecture are:

1. Test Plan

• The Test Plan is the root element of any JMeter test. It contains the configuration and structure of the test, including the threads, samplers, listeners, and other components. The test plan defines what will be tested, the steps to perform during the test, and the expected outcomes.

2. Thread Group

• A Thread Group defines the number of virtual users (threads) that will execute the test. Each thread simulates a real user, and you can configure the number of threads, the ramp-up time (time to start all threads), and the loop count (how many times the threads should run).
• Example: In a load test scenario, you might configure the Thread Group to simulate 500 users with a 1-minute ramp-up period.

3. Samplers

• Samplers are responsible for sending requests to the server. There are several types of samplers, such as HTTP Request, FTP Request, JDBC Request, and SOAP Request. Each sampler is associated with a specific type of request that JMeter will send to the server.
• Example: An HTTP Request sampler is used to simulate a user sending a request to a website.

4. Listeners

• Listeners are responsible for collecting the results of the test. They provide detailed metrics, such as response times, error rates, throughput, and more. JMeter provides various types of listeners, including View Results Tree, Graph Results, Summary Report, and Aggregate Report.
• Example: A View Results Tree listener shows detailed results of each request made during the test, including any errors encountered.

5. Config Elements

• Config Elements help set up different aspects of the test, such as HTTP Request Defaults, CSV Data Set Config, and User Defined Variables. These elements allow you to customize and configure the test plan without hardcoding values.
• Example: The CSV Data Set Config can be used to read data from a CSV file and use that data for the test, such as user credentials or product IDs.

6. Assertions

• Assertions are used to validate the results of each request during the test. They ensure that the responses from the server match the expected outcomes.
• Example: A Response Assertion might check whether the response from a server contains the expected text or status code.

---

What Are the Basic Workflow of JMeter?

The basic workflow of using JMeter for performance and load testing involves several steps:

1. Designing a Test Plan

• Test Plan Creation: Define the test objectives, such as simulating multiple users or measuring specific performance metrics. Set up the Thread Groups to simulate virtual users, and define the appropriate Samplers to send requests to the server.
• Example: In a web application test, you might create a Test Plan that simulates multiple users browsing pages, submitting forms, and making purchases.

2. Configuring Test Parameters

• Thread Groups: Set the number of threads (users), ramp-up time (how long it takes to start all threads), and loop count (how many times the test is run).
• Samplers: Define the types of requests to be sent (e.g., HTTP requests) and set the parameters for those requests, such as URL, headers, and body content.
• Listeners: Add listeners to capture test results and metrics, such as View Results Tree for detailed response data and Summary Report for aggregated performance metrics.

3. Running the Test

• Execute the Test: Once the Test Plan is configured, run the test to simulate the defined load. JMeter will send requests to the server and measure the system’s performance based on the collected results.
• Monitoring: During the test, JMeter provides real-time feedback through listeners that show response times, errors, throughput, and other performance metrics.

4. Analyzing Test Results

• After running the test, use the listeners and reports to analyze the results. Key metrics to evaluate include:
  • Response Time: The time it takes for the server to respond to each request.
  • Throughput: The number of requests handled by the server per unit of time.
  • Error Rate: The percentage of failed requests during the test.
• Example: You may find that the response time increases significantly as the number of users (threads) grows, indicating that the server is struggling under higher load.

5. Optimizing and Refining Tests

• Based on the results, you may need to adjust the Test Plan by optimizing the server configuration or adjusting the load. After refining the test parameters, re-run the test to verify the improvements.

---

Step-by-Step Getting Started Guide for JMeter

Step 1: Download and Install JMeter

• Download JMeter: Go to the official JMeter website and download the latest version of JMeter.
• Installation: JMeter is a Java-based application, so ensure you have Java installed. Extract the downloaded ZIP file to a directory and run jmeter.bat (Windows) or jmeter.sh (Linux/Mac).

Step 2: Create a Test Plan

• Launch JMeter and create a new Test Plan by right-clicking on the Test Plan node and selecting Add > Threads > Thread Group.

Step 3: Add Samplers

• Add Samplers like HTTP Request to simulate requests to a server. Configure each sampler with the relevant URL, parameters, and methods.

Step 4: Add Listeners

• Add listeners such as View Results Tree and Summary Report to capture and analyze the test results.

Step 5: Run the Test

• Click the Start button in JMeter to run the test. Monitor the test execution and collect results.

Step 6: Analyze the Results

• Review the results to understand the performance characteristics of the system. Focus on key metrics such as response time, throughput, and error rates.
