What is GraphQL?

GraphQL is an open-source query language for APIs and a runtime environment for executing those queries against a type system defined by the API. It was developed by Facebook in 2012 and released to the public in 2015. GraphQL allows clients to request exactly the data they need, minimizing the amount of data transferred over the network and improving performance.

Unlike traditional REST APIs, where multiple endpoints are used to fetch different pieces of data, GraphQL enables clients to query multiple resources in a single request. This flexibility allows clients to aggregate data from multiple sources and avoid over-fetching or under-fetching data.

Key Features of GraphQL:

• Strongly Typed Schema: GraphQL APIs are defined by a schema that specifies the types of data and the relationships between them. This schema acts as a contract between the client and server.
• Single Endpoint: Unlike REST, where different resources have different endpoints, GraphQL uses a single endpoint for all queries, mutations, and subscriptions.
• Declarative Data Fetching: Clients specify exactly what data they need in a query, which reduces the size of the response and improves performance.
• Real-time Updates (Subscriptions): GraphQL supports subscriptions, enabling clients to receive real-time updates when data changes.
• Introspection: GraphQL APIs are self-documenting, meaning you can query the API schema to discover the types, queries, and mutations available.

How GraphQL Differs from REST:

• Single Endpoint: Unlike REST, which uses multiple endpoints for different data (e.g., /users, /posts), GraphQL exposes a single endpoint (e.g., /graphql).
• Custom Queries: In GraphQL, clients can define the structure of the response, making it more efficient and flexible compared to REST, where responses are predefined.
• Over-fetching and Under-fetching: In REST, clients might receive more data than they need (over-fetching) or less data, requiring additional requests (under-fetching). GraphQL resolves this issue by allowing clients to request only the data they need.

---

Major Use Cases of GraphQL

GraphQL is used in a variety of scenarios where flexibility, efficiency, and performance are essential. Here are some of the major use cases of GraphQL:

1. Data Fetching for Modern Web and Mobile Apps

GraphQL is widely used in modern web and mobile applications where user interfaces need to display dynamic data. With its efficient querying capabilities, GraphQL allows developers to fetch data from different sources, such as databases and APIs, in a single request.

• Example: A mobile app that shows a user’s profile, including personal information, posts, and followers, can fetch all the data in a single GraphQL query instead of making multiple REST requests.

Benefits:

• Efficient Data Retrieval: Retrieve only the required data in one request.
• Improved Performance: Avoid over-fetching or under-fetching data, improving app performance.

2. Microservices Aggregation

In complex architectures with multiple microservices, GraphQL serves as a single entry point to aggregate data from various microservices and APIs. It enables clients to fetch data from multiple services in one request, simplifying the management of distributed systems.

• Example: A social media platform might use GraphQL to aggregate data from multiple microservices like user management, posts, and comments, allowing the client to request all data at once.

Benefits:

• Centralized Access: Aggregate data from multiple microservices through a single API.
• Simplified Client Logic: The client only needs to interact with one endpoint instead of multiple services.

3. Real-Time Data and Subscriptions

GraphQL provides subscriptions, which allow clients to subscribe to real-time updates from the server. This is useful for applications that require live updates or real-time data synchronization.

• Example: A collaboration app can use GraphQL subscriptions to send real-time updates to users when a document is edited by another user.

Benefits:

• Real-Time Updates: Clients automatically receive updates without needing to poll the server continuously.
• Low Latency: Subscriptions are ideal for applications requiring low-latency updates, like chat apps or financial dashboards.

4. Server-Side Rendering (SSR) and Static Sites

GraphQL is also used in Server-Side Rendering (SSR) and static site generation (SSG) scenarios. It enables developers to fetch all the data needed to render a page before serving it to the client, improving performance and user experience.

• Example: A blogging platform can use GraphQL to fetch the content of a post, author information, and comments all in one query before rendering the page.

Benefits:

• Improved Load Times: Data is fetched at the server side before sending the page to the client, reducing client-side load times.
• Efficient Content Fetching: A single query can fetch all the content for a page, reducing the number of network requests.

---

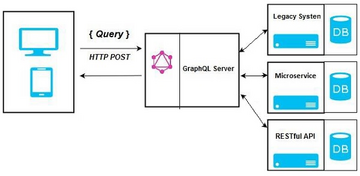

How GraphQL Works (Architecture)

The architecture of GraphQL revolves around queries, mutations, subscriptions, and schemas. Below is a detailed look at the core components of GraphQL’s architecture:

1. GraphQL Schema

At the heart of every GraphQL API is a schema, which defines the types of data, the queries that can be executed, and the mutations that can be performed. The schema is the contract between the client and the server, specifying what data is available and how it can be accessed.

• Types: GraphQL defines types (e.g., User, Post, Comment) that describe the structure of the data.
• Queries: The Query type defines the read operations, i.e., how data can be retrieved from the server.
• Mutations: The Mutation type defines the write operations, i.e., how data can be modified on the server.
• Subscriptions: The Subscription type defines how clients can receive real-time updates.

2. Query Execution

When a client sends a query, the GraphQL server processes the query by matching it to the schema. It resolves each field in the query by fetching the required data from the underlying data sources, such as databases or APIs.

• Example:

query {
  user(id: 1) {
    name
    posts {
      title
      content
    }
  }
}

The query above asks for the name of a user and a list of their posts. The GraphQL server will process this query and return the requested data.

3. Resolver Functions

Resolvers are functions that are responsible for fetching data for each field in a query. For instance, when a query requests a user’s name, the resolver function will fetch that data from a database or other data source.

• Example:

const resolvers = {
  Query: {
    user: (parent, args, context, info) => {
      return getUserFromDatabase(args.id);
    }
  }
};

4. Mutations and Subscriptions

• Mutations: Used for modifying data on the server, such as creating, updating, or deleting records.

mutation {
  createUser(name: "John") {
    id
    name
  }
}

• Subscriptions: Allow clients to receive real-time updates when data changes. Subscriptions are used for applications that require live data, such as chat applications.

subscription {
  newMessage {
    user
    content
  }
}

---

Basic Workflow of GraphQL

The basic workflow of GraphQL can be broken down into the following steps:

1. Client Sends a Query: The client sends a GraphQL query to the server, specifying the data it needs.
2. GraphQL Server Resolves the Query: The server processes the query by calling resolver functions for each field in the query.
3. Data is Fetched and Returned: The resolver functions fetch the required data from databases or APIs and return it to the client.
4. Client Receives Data: The client receives the requested data and can render it in the UI.

This flexible and declarative model allows the client to ask for exactly what it needs and nothing more.

---

Step-by-Step Getting Started Guide for GraphQL

Step 1: Set Up a GraphQL Server

1.Install Dependencies: You need a GraphQL server to process the queries. Popular libraries for building GraphQL servers include Apollo Server and Express-GraphQL (for Node.js).

• Example (with Apollo Server):

npm install apollo-server graphql

2.Create a Schema: Define your schema with types, queries, and mutations.

• Example:

type Query {
  user(id: Int!): User
}

type User {
  id: Int
  name: String
}

Step 2: Implement Resolvers

Resolvers fetch the data for each field in the schema.

• Example:

const resolvers = {
  Query: {
    user: (parent, args) => {
      return { id: args.id, name: "John Doe" }; // Fetch data from database
    }
  }
};

Step 3: Start the Server

1.Create an instance of the Apollo Server and pass in your schema and resolvers.

• Example:

const { ApolloServer, gql } = require('apollo-server');

const typeDefs = gql`
  type Query {
    user(id: Int!): User
  }

  type User {
    id: Int
    name: String
  }
`;

const resolvers = {
  Query: {
    user: (parent, args) => ({ id: args.id, name: "John Doe" }),
  }
};

const server = new ApolloServer({ typeDefs, resolvers });

server.listen().then(({ url }) => {
  console.log(`Server ready at ${url}`);
});

Step 4: Send Queries from Client

Use GraphQL client libraries, like Apollo Client, or simply use HTTP requests to send queries to the server.

• Example:

fetch('http://localhost:4000', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
  },
  body: JSON.stringify({
    query: `query { user(id: 1) { name } }`
  }),
})
.then(response => response.json())
.then(data => console.log(data));
