Introduction

Apache Spark SQL is an integral part of the Apache Spark ecosystem, which is a powerful distributed computing framework designed for big data processing. Spark SQL is a module for structured data processing, and it provides a programming interface for working with data in a distributed environment using SQL queries.

Unlike traditional SQL engines, Apache Spark SQL supports big data environments, allowing users to run SQL queries on large datasets across multiple nodes. It integrates with the Spark Core and provides support for querying data stored in various formats (e.g., Parquet, Avro, ORC, JDBC, Hive, etc.). Additionally, it offers DataFrame API and Dataset API, which provide a higher-level abstraction for handling structured data.

This guide will delve into what Apache Spark SQL is, its major use cases, how it works, its architecture, the basic workflow of Spark SQL, and provide a step-by-step guide on how to get started with Apache Spark SQL.

---

What is Apache Spark SQL?

Apache Spark SQL is a component of Apache Spark designed for structured data processing. It allows for querying structured and semi-structured data through SQL queries, as well as through the DataFrame API and Dataset API. Spark SQL allows users to perform data processing and querying with a combination of SQL and functional programming constructs, making it flexible for both developers and data scientists.

Spark SQL supports a variety of data formats, including traditional relational databases, NoSQL databases, Hadoop data sources, and file formats such as Parquet and JSON. Spark SQL runs on Apache Spark, enabling it to process massive datasets across distributed systems, handling both batch and real-time data.

Key Features of Apache Spark SQL:

1. Unified Data Processing: Combines batch processing, streaming data, and machine learning within the same engine, allowing seamless querying across different data sources.
2. Compatibility with Hive: Spark SQL can run Hive queries natively, enabling users to query data stored in Hive tables using SQL syntax.
3. DataFrames and Datasets: Offers high-level APIs for working with structured data in the form of DataFrames (a distributed collection of data organized into named columns) and Datasets (strongly typed extensions of DataFrames).
4. Optimized Query Execution: Spark SQL includes the Catalyst query optimizer, which improves the performance of SQL queries and optimizes query execution.

---

Major Use Cases of Apache Spark SQL

Apache Spark SQL is used in a wide range of data processing applications due to its ability to handle large volumes of structured data and provide efficient query execution. Here are some major use cases:

1. Big Data Analytics

Spark SQL is widely used in big data analytics for processing structured data at scale. It is commonly used in applications that require large-scale data analysis, such as web analytics, social media data analysis, and financial data processing.

• Use Case Example: A retail analytics system that processes user activity logs stored in Parquet format and uses Spark SQL to generate insights about user behavior and sales trends.

2. Data Warehousing and ETL

Spark SQL is frequently used for Extract, Transform, and Load (ETL) operations. It allows organizations to clean, transform, and aggregate large datasets before loading them into data warehouses or data lakes for further analysis.

• Use Case Example: A financial institution might use Spark SQL to perform ETL operations on transaction data, aggregating financial records, and loading them into a data warehouse for reporting and analysis.

3. Real-Time Data Processing

Spark SQL can process streaming data (via Spark Streaming) in real-time and can handle both batch and streaming queries. This makes it suitable for real-time data analytics use cases, such as monitoring web traffic or IoT data.

• Use Case Example: A real-time analytics platform that ingests sensor data from manufacturing equipment and uses Spark SQL to monitor system performance, generating alerts for anomalies in production processes.

4. Machine Learning Data Preprocessing

Spark SQL is often used in data preprocessing for machine learning workflows. It enables data scientists to clean, filter, and transform large datasets efficiently, preparing them for training machine learning models.

• Use Case Example: A recommendation engine might use Spark SQL to preprocess customer transaction data before training a machine learning model to generate personalized product recommendations.

5. Business Intelligence and Reporting

With its ability to integrate with SQL-based tools and BI platforms, Spark SQL can be used to provide business intelligence insights. It supports querying data using SQL, making it accessible to analysts and business users.

• Use Case Example: An e-commerce platform using Spark SQL to generate business intelligence reports on sales performance, customer engagement, and inventory management.

---

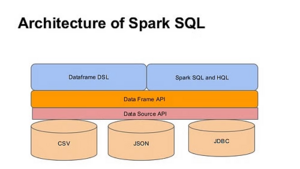

How Apache Spark SQL Works: Architecture

The architecture of Apache Spark SQL involves several components that work together to process and query large-scale structured data:

1. Catalyst Query Optimizer

The Catalyst optimizer is a central part of Spark SQL. It performs various transformations and optimizations on the query plan, including:

• Logical optimization: Optimizes the logical plan of a query by applying rule-based optimizations like predicate pushdown.
• Physical planning: Decides the best physical execution plan for the query based on cost-based optimization.
• Query execution: Translates the optimized plan into RDD transformations that can be executed on a cluster.

2. DataFrames and Datasets

• DataFrames: A distributed collection of data organized into named columns. It provides a high-level API that abstracts away the underlying complexity of RDDs (Resilient Distributed Datasets) and provides a schema for structured data.
• Datasets: A strongly typed version of DataFrames that supports both functional and relational queries. Datasets provide type safety and compile-time checking, making them useful for developers who prefer working with type-safe code.

3. SQLParser

The SQLParser component is responsible for parsing SQL queries and converting them into logical plans that the Catalyst optimizer can work with.

4. Query Execution Engine

Once the query is optimized by the Catalyst optimizer, the query execution engine converts the logical plan into physical execution steps that can be executed on Spark clusters.

5. Data Sources API

Apache Spark SQL supports querying data from various data sources through the Data Sources API. This includes support for structured data formats like Parquet, ORC, and Avro, as well as traditional relational databases via JDBC and Hive.

---

Basic Workflow of Apache Spark SQL

The workflow of using Apache Spark SQL typically follows these steps:

1. Initialize SparkSession: A SparkSession is created to interact with the underlying Spark SQL engine. It serves as the entry point for data processing and querying.
2. Load Data: Data is loaded from various sources (e.g., CSV, Parquet, JDBC) using Spark SQL’s DataFrame API.
3. Write Queries: SQL queries are written to process and analyze the data, or you can use the DataFrame API to transform data programmatically.
4. Optimize Queries: Spark SQL’s Catalyst optimizer applies query optimizations to improve performance.
5. Execute Queries: The optimized query is executed by the query execution engine, distributing tasks across the cluster.
6. Retrieve Results: The results are returned and can be stored, visualized, or further processed.

---

Step-by-Step Getting Started Guide for Apache Spark SQL

Step 1: Install Apache Spark

Before you can start working with Apache Spark SQL, you need to set up Apache Spark on your local machine or a cluster. You can download Apache Spark from the official website or use Apache Hadoop as the underlying cluster.

1. Download and install Apache Spark from https://spark.apache.org/downloads.html.
2. Set up a Spark cluster (if needed) or configure a local environment for testing.

Step 2: Set Up SparkSession

The first step in using Spark SQL is to create a SparkSession. This serves as the entry point for all functionality in Spark SQL.

from pyspark.sql import SparkSession

# Initialize SparkSession
spark = SparkSession.builder \
    .appName("Spark SQL Example") \
    .getOrCreate()
Code language: PHP (php)

Step 3: Load Data into DataFrame

Once you have the Spark session ready, you can load data into a DataFrame. Spark SQL can read data from a variety of sources, such as CSV, Parquet, JSON, and JDBC.

# Load CSV file into a DataFrame
df = spark.read.csv("data.csv", header=True, inferSchema=True)

# Show the first few rows of the DataFrame
df.show()
Code language: PHP (php)

Step 4: Write and Execute SQL Queries

You can use SQL queries to process and analyze the data. First, register the DataFrame as a temporary SQL table.

# Register DataFrame as a temporary SQL table
df.createOrReplaceTempView("my_table")

# Execute a SQL query
result = spark.sql("SELECT * FROM my_table WHERE column_name = 'some_value'")

# Show the query result
result.show()
Code language: PHP (php)

Step 5: Use DataFrame API (Optional)

Alternatively, you can perform operations using the DataFrame API. The DataFrame API provides a functional way of handling data, which can be used alongside or in place of SQL queries.

# Filter DataFrame using DataFrame API
df_filtered = df.filter(df["column_name"] == "some_value")
df_filtered.show()
Code language: PHP (php)

Step 6: Optimize Queries

Spark SQL automatically optimizes queries through the Catalyst optimizer. You can use explain() to view the execution plan and optimize queries if needed.

# Explain the query execution plan
df_filtered.explain()
Code language: PHP (php)

Step 7: Save the Results

After processing data, you can save the results back to storage, such as a CSV, Parquet, or database.

# Save the DataFrame to a Parquet file
df_filtered.write.parquet("output.parquet")
Code language: PHP (php)
